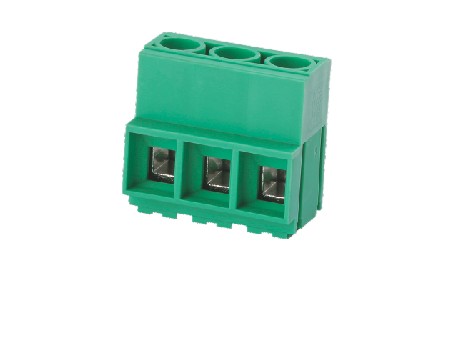

1、Model:TB135-10.16
Picth:A=10.16mm(.400")
Poles QTY:2P,3P-24P
Color:Green(can choice)

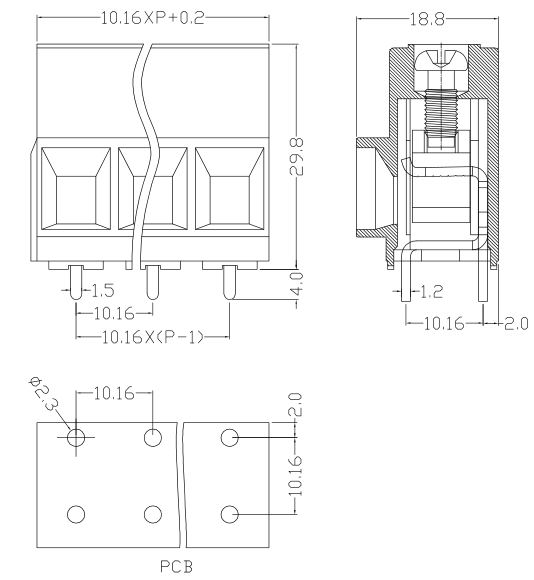

2、Dimensioned drawing:
3No.
ITEM
Origin
Material
Surface
QTY
1
Housing
Own
making
PA66(UL 94V-0)
——
1
2
screw
outsourcing
Steel(A3)
Zinc plated
2-24
3
Wire Cage
outsourcing
Brass or Stee
Nickel Plated
2-24
4
Pin header
Own
making
Brass
Tin Plated
2-24
4、Technical data:
Wire range:20-6AWG 10.0mm²
Voltage&Current:300V 52A
Torque:1.2N.m
Withstand Voltage:AC3000V 60s
5、Environment:
Operating Temperature:-40℃ ~ +105℃
Pollution Level:Ⅲ
6、Inspection standards:
GBT 2828.1-2012
7、Useing:
Wire Stripping Lenght:10±0.5mm
Soldering:
Wave Soldering:260℃/5s
Hand Soldering:soldering iron350℃/10s
