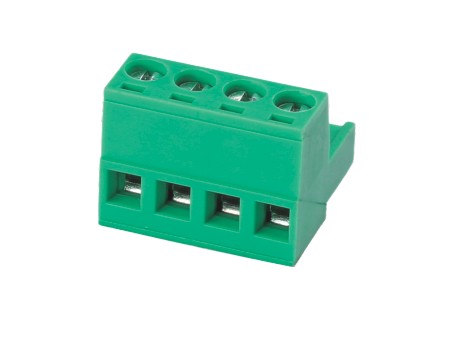

1、Model：TB2500FA-5.0 TB2500FB-5.08
Picth：A=5.0mm(.197")/5.08mm(.200")
Poles QTY：2P-24P
Color：Green（can choice）

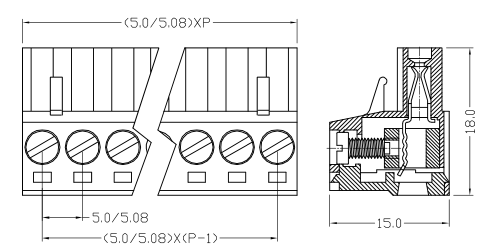

2、Dimensioned drawing：
No.
ITEM
Origin
Material
Surface
QTY
1
Housing
Own
making
PA66（UL 94V-0）
——
1
2
screw
outsourcing
Steel(A3)
Zinc plated
2-24
3
Wire Cage
Own
making
Brass/Steel
Nickel/Zn Plated
2-24
4
Contact
Own
making
Phosphor
Bronze
Nickel
Plated
2-24
4、Technical data：
Wire range：28-12AWG 2.5mm²
Voltage&Current：300V 15A
Torque：0.4N.m
Withstanding Voltage：AC2500V 60s
5、Environment：
Operating Temperature：-40℃ ~ +105℃
Pollution Level：Ⅲ
6、Inspection standards：
GBT 2828.1-2012
7、Useing：
Wire Stripping Lenght：6-7mm
Soldering：
Wave Soldering：260℃/5s
Hand Soldering：soldering iron350℃/10s
3、BOM：
