  • Terminal Block  TB2500FT-3.5 TB2500FD-3.81

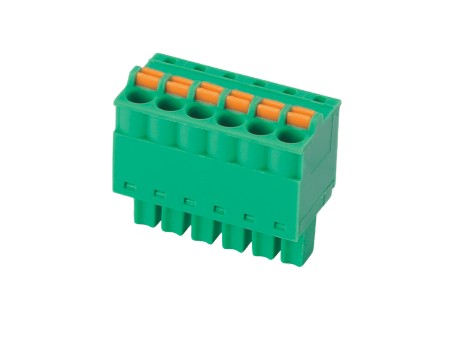

Terminal Block TB2500FT-3.5 TB2500FD-3.81

Product Description:

1、Model:TB2500FT-3.5 TB2500FD-3.81

Picth:A=3.5mm(.138")/3.81mm(.150")

Poles QTY:2P-24P

Color:Green(can choice)

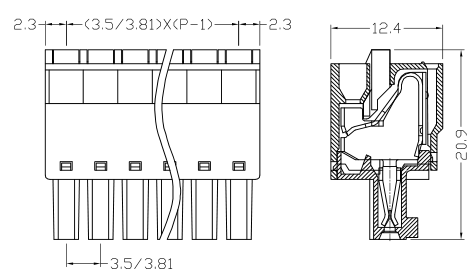

2、Dimensioned drawing


3、BOM

No.

ITEM

Origin

Material

Surface

QTY

1

Housing

Own

making

PA66(UL 94V-0)

——

1

2


Spring

Own

making

Stainless Steel

——

2-24

3

Contact



Own

making

Phosphor

Bronze

Nickel

Plated

2-24



4、Technical data

  Wire range:28-16AWG  0.5-1.5mm²

  Voltage&Current:300V  8A

  Withstanding Voltage:AC2500V 60s



5、Environment

  Operating  Temperature:-40℃ ~ +105℃

  Pollution  Level:Ⅲ

6、Inspection standards

  GBT 2828.1-2012

7、Useing

  Wire Stripping  Lenght:8-9mm

  Soldering:

  Wave Soldering:260℃/5s

  Hand Soldering:soldering iron350℃/10s
