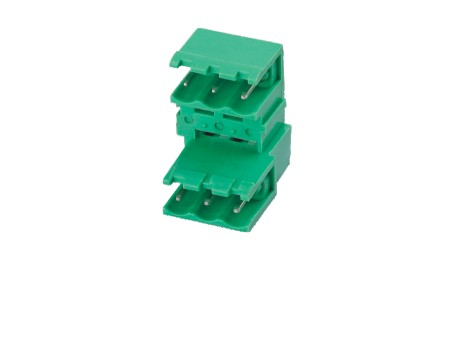

1、Model：TB2500TRA-5.0 TB2500TRC-5.08
Picth：A=5.0mm(.197")/5.08mm(.200")
Poles QTY：2*(2P-24P)
Color：Green（can choice）
2、Dimensioned drawing：
3、BOM：
|
No. |
ITEM |
Origin |
Material |
Surface |
QTY |
|
1 |
Housing |
Own making |
PA66（UL 94V-0） |
—— |
1 |
|
2 |
Pin header |
Own making |
Brass |
Tin Plated |
2*(2-24) |
4、Technical data：
Voltage&Current：300V 15A
Withstanding Voltage：AC2500V 60s
5、Environment：
Operating Temperature：-40℃ ~ +105℃
Pollution Level：Ⅲ
6、Inspection standards：
GBT 2828.1-2012
7、Useing：
Soldering：
Wave Soldering：260℃/5s
Hand Soldering：soldering iron350℃/10s
