  • Terminal Block TB256R-A.B.C

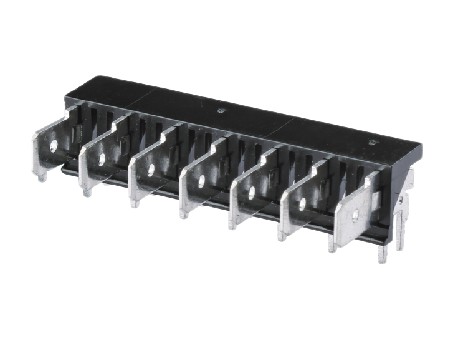

Terminal Block TB256R-A.B.C

Product Description:

1、Model:TB256R-A.B.C

Picth:A=5.08mm(.200")/7.62mm(.300")

Poles QTY:2P-25P

Color:Black(can choice)

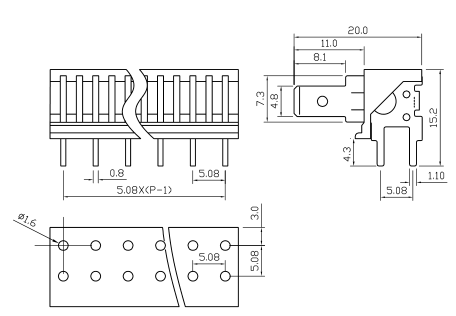

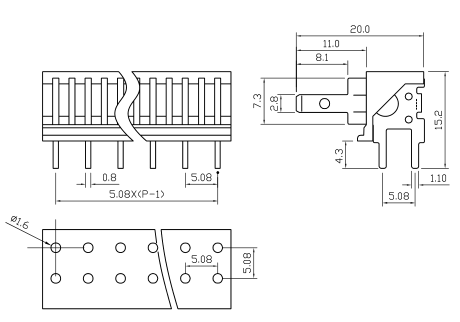

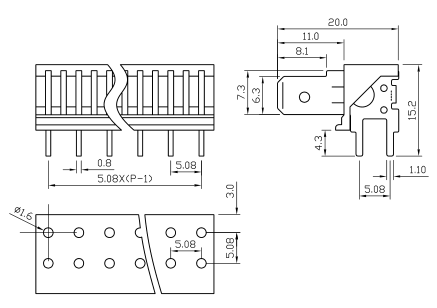

2、Dimensioned drawing




3、BOM

No.

ITEM

Origin

Material

Surface

QTY

1

Housing

Own

making

PC

——

1

2

Pin header

Own

making

Brass

Tin Plated

2-25



4、Technical data

  Voltage&Current:250V  12A

  Withstanding Voltage:AC2500V 60s



5、Environment

  Operating  Temperature:-40℃ ~ +105℃

  Pollution  Level:Ⅲ

6、Inspection standards

  GBT 2828.1-2012

7、Useing

  Soldering:

  Wave Soldering:260℃/5s

  Hand Soldering:soldering iron350℃/10s
