Test Probe J30036A

Features

·2 kinds of different length can used in many different testing.

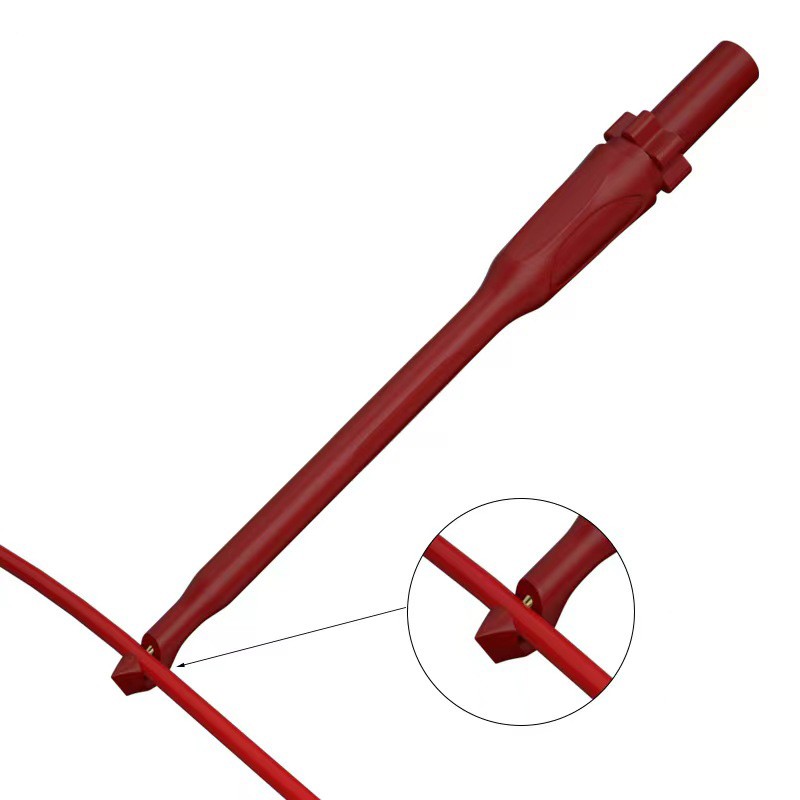

·The probe can pierce the outer skin of the cable and contact the inner conductor, which can pierce the insulation of the wire, and max 4mm diameter test wire can be put into their V-notch

·When use by thread, rotate the bottom, and then put the test line into the V-shaped slot, which is easy to operate and free your hands.

·Insulated flame retardant PA shell,can be used to connect weak electricity test leads kit or multimeter tools . 2PCS Stainless Puncture probes , can easy pierce the wire but do not damage it . When remove the puncture probe ,the test lead can still be used like before.

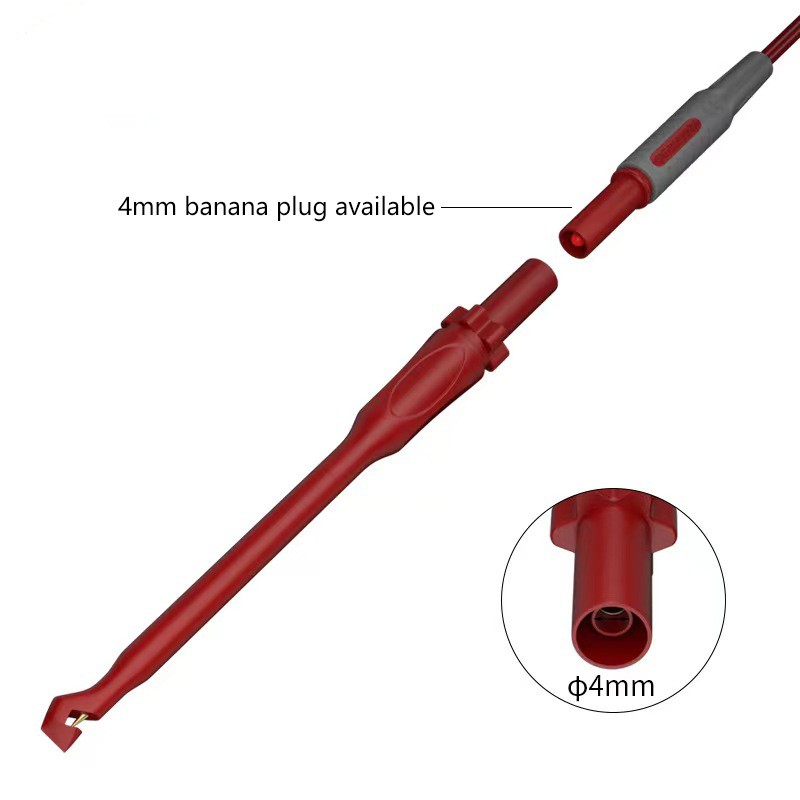

·4mm standard female banana plug seat at the end,can connect most of test lead ,diagnostic devices and automotive testing.

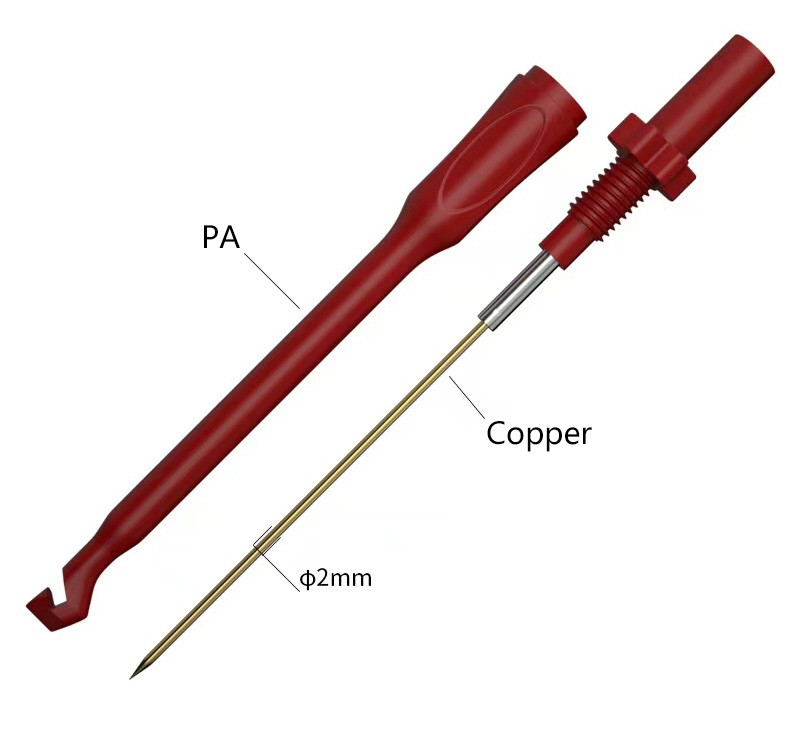

·Made of high quality material, surface material: PA; needle material: pure brass,high reliability and long service life. Rated Voltage & Current : CATIII 1000V/Max 10A

Parameter

Voltage and Current: 1000V / 10A

Surface Material: PA

Needle Material: Pure Brass

Connection: 4mm Banana Plug

Color: Red and Black

Length: Approx. 170mm(66.9in)
