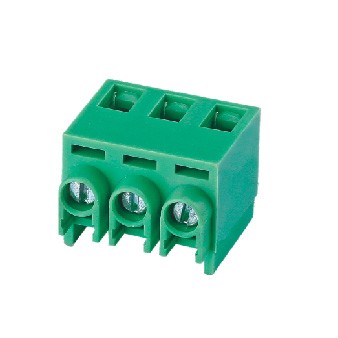

1、Model：CM20-40-2P CM20-42-3P
Picth：A=6.0mm(.236")
Poles QTY：2P,3P
Color：Green（can choice）

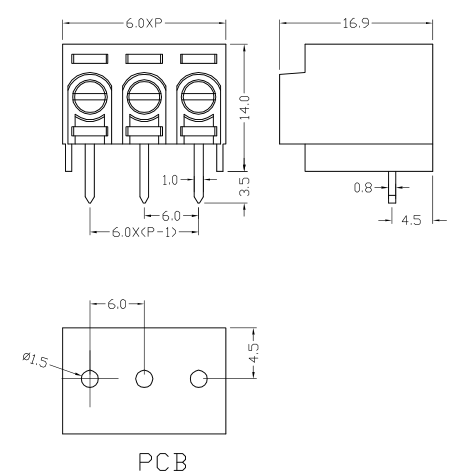

2、Dimensioned drawing：
No.
ITEM
Origin
Material
Surface
QTY
1
Housing
Own
making
PA66（UL 94V-0）
——
1
2
screw
outsourcing
Steel(A3)
Zinc plated
3
3
Wire Cage
outsourcing
Brass
Nickel Plated
3
4
Pin header
Own
making
Brass
Tin Plated
3
4、Technical data：
Wire range：24-12AWG 2.5mm²
Voltage&Current：300V 15A
Torque：0.5N.m
Withstanding Voltage：AC2000V 60s
5、Environment：
Operating Temperature：-40℃ ~ +105℃
Pollution Level：Ⅲ
6、Inspection standards：
GBT 2828.1-2012
7、Useing：
Wire Stripping Lenght：10±0.5mm
Soldering：
Wave Soldering：260℃/5s
Hand Soldering：soldering iron350℃/10s
3、BOM：
