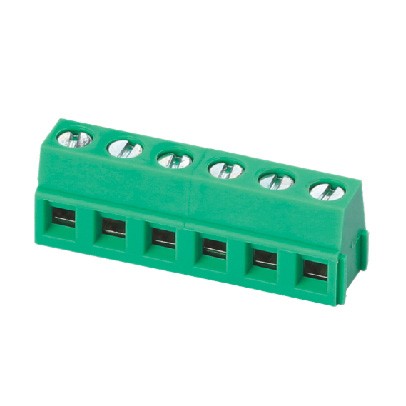

1、Model：TB127V-5.0
Picth：A=5.0mm(.197")
Poles QTY：2P,3P-24P
Color：Green（can choice）

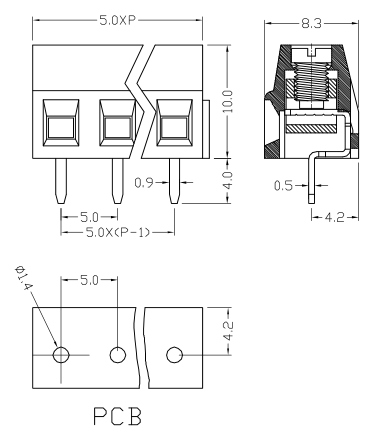

2、Dimensioned drawing：
3、BOM：
|
No. |
ITEM |
Origin |
Material |
Surface |
QTY |
|
1 |
Housing |
Own making |
PA66（UL 94V-0） |
—— |
1 |
|
2 |
screw |
outsourcing |
Steel(A3) |
Zinc plated |
2-24 |
|
3 |
Wire Cage |
outsourcing |
Brass |
Nickel Plated |
2-24 |
|
4 |
Pin header
|
Own making |
Brass |
Tin Plated |
2-24 |
4、Technical data：
Wire range：26-14AWG 1.5mm²
Voltage&Current：300V 12A
Torque：0.5N.m
Withstand Voltage：AC2000V 60s
5、Environment：
Operating Temperature：-40℃ ~ +105℃
Pollution Level：Ⅲ
6、Inspection standards：
GBT 2828.1-2012
7、Useing：
Wire Stripping Lenght：5-6±0.5mm
Soldering：
Wave Soldering：260℃/5s
Hand Soldering：soldering iron350℃/10s
