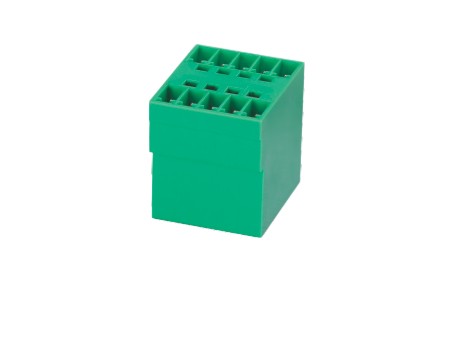

1、Model:TB2500HVF-3.5 TB2500HVE-3.81
Picth:A=3.5mm(.138")/3.81mm(.150")
Poles QTY:2*(2P-24P)
Color:Green(can choice)

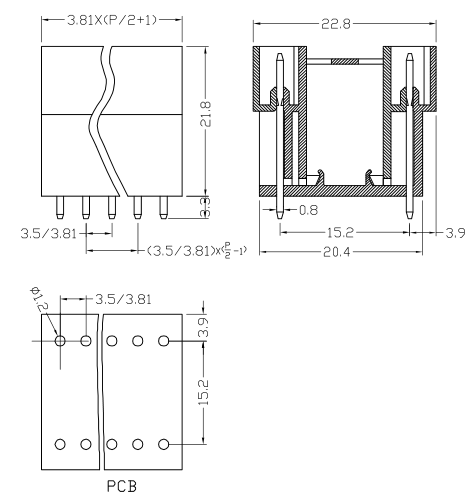

2、Dimensioned drawing:
No.
ITEM
Origin
Material
Surface
QTY
1
Housing
Own
making
PA66(UL 94V-0)
——
1
2
Pin header
Own
making
Brass
Tin Plated
2*(2-24)
4、Technical data:
Voltage&Current:300V 8A
Withstanding Voltage:AC2500V 60s
5、Environment:
Operating Temperature:-40℃ ~ +105℃
Pollution Level:Ⅲ
6、Inspection standards:
GBT 2828.1-2012
7、Useing:
Soldering:
Wave Soldering:260℃/5s
Hand Soldering:soldering iron350℃/10s
