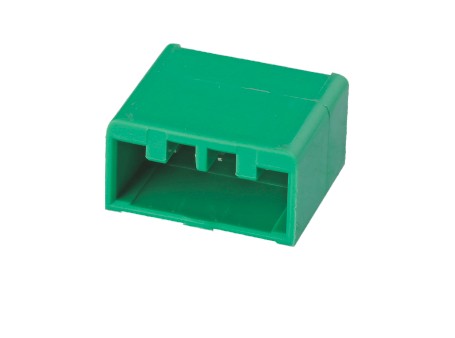

1、Model：TB2501
Picth：A=2.54mm(.100")
Poles QTY：7P
Color：Green（can choice）
2、Dimensioned drawing：
3、BOM：
|
No. |
ITEM |
Origin |
Material |
Surface |
QTY |
|
1 |
Housing |
Own making |
PA66（UL 94V-0） |
—— |
1 |
|
2 |
Pin header |
Own making |
Brass |
Nickel Plated |
7 |
4、Technical data：
Voltage&Current：125V 8A
Withstanding Voltage：AC2000V 60s
5、Environment：
Operating Temperature：-40℃ ~ +105℃
Pollution Level：Ⅲ
6、Inspection standards：
GBT 2828.1-2012
7、Useing：
Soldering：
Wave Soldering：260℃/5s
Hand Soldering：soldering iron350℃/10s
