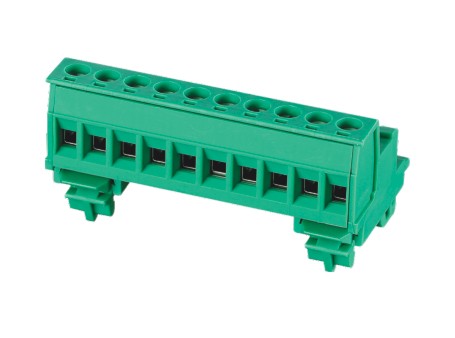

1、Model：TB2500VRK-5.08
Picth：A=5.08mm(.200")
Poles QTY：6P-24P
Color：Green（can choice）
2、Dimensioned drawing：
3、BOM：
|
No. |
ITEM |
Origin |
Material |
Surface |
QTY |
|
1 |
Housing |
Own making |
PA66（UL 94V-0） |
—— |
1 |
|
2 |
screw |
outsourcing |
Steel(M3) |
Zn plated |
6-24 |
|
3 |
Wire Cage |
outsourcing |
Copper alloy |
Ni Plated |
6-24 |
|
4
|
Pin header |
Own making |
Copper alloy |
Sn Plated |
6-24 |
4、Technical data：
Wire range：28-14AWG 2.5mm²
Voltage&Current：300V 15A
Torque：0.5N.m
Withstanding Voltage：AC2000V 60s
5、Environment：
Operating Temperature：-40℃ ~ +105℃
Pollution Level：Ⅲ
6、Inspection standards：
GBT 2828.1-2012
7、Useing：
Wire Stripping Lenght：7-8mm
Soldering：
Wave Soldering：260℃/5s
Hand Soldering：soldering iron350℃/10s
