1、Model：TBDB15-3.5F
Picth：A=3.5mm(.138")
Poles QTY：3P,5P
Color：Green（can choice）

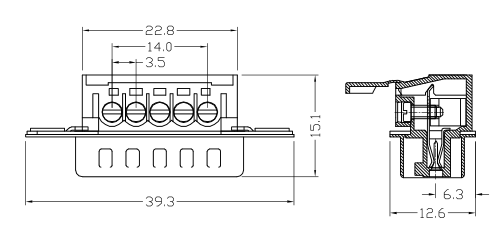

2、Dimensioned drawing：
3No.
ITEM
Origin
Material
Surface
QTY
1
Housing
Own
making
PA66（UL 94V-0）
——
1
2
screw
outsourcing
Steel(A3)
Zinc plated
3,5
3
Wire Cage
Own
making
Brass
Nickel Plated
3,5
4
Contact
Own
making
Phosphor
Bronze
Tin Plated
3,5
4、Technical data：
Wire range：28-16AWG 0.5-1.5mm²
Voltage&Current：300V 8A
Torque：0.2N.m
Withstanding Voltage：AC2000V 60s
5、Environment：
Operating Temperature：-40℃ ~ +105℃
Pollution Level：Ⅲ
6、Inspection standards：
GBT 2828.1-2012
7、Useing：
Wire Stripping Lenght：6-7mm
Soldering：
Wave Soldering：260℃/5s
Hand Soldering：soldering iron350℃/10s
