  • Terminal Block TB2500RM-7.5 TB2500RN-7.62

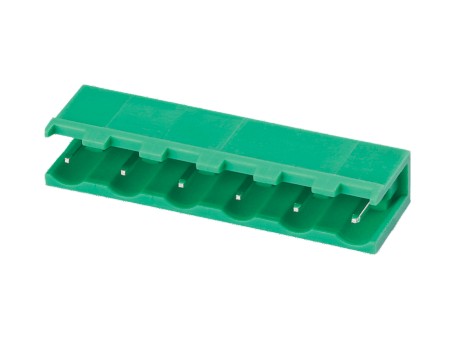

Terminal Block TB2500RM-7.5 TB2500RN-7.62

Product Description:

1、Model:TB2500RM-7.5 TB2500RN-7.62

 Picth:A=7.5mm(.295")/7.62mm(.300")

 Poles QTY:2P-12P

 Color:Green(can choice)



2、Dimensioned drawing

XY2500RM-7.5 XY2500RN-7.62

3、BOM

No.

ITEM

Origin

Material

Surface

QTY

1

Housing

Own

making

PA66(UL 94V-0)

——

1

2

Pin header

Own

making

Brass

Tin Plated

2-12



4、Technical data

  Voltage&Current:300V  15A

  Withstanding Voltage:AC2500V 60s



5、Environment

  Operating  Temperature:-40℃ ~ +105℃

  Pollution  Level:Ⅲ

6、Inspection standards

  GBT 2828.1-2012

7、Useing

  Soldering:

  Wave Soldering:260℃/5s

  Hand Soldering:soldering iron350℃/10s
