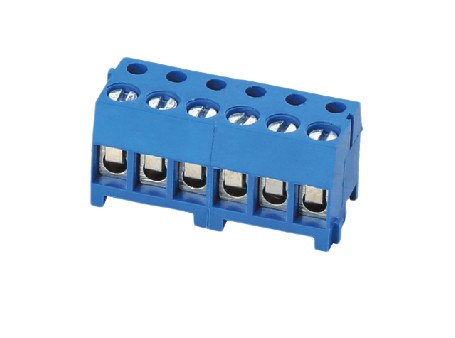

1、Model：TB333-3.5
Picth：A=3.5mm(.138")
Poles QTY：2P,3P-24P
Color：Blue（can choice）

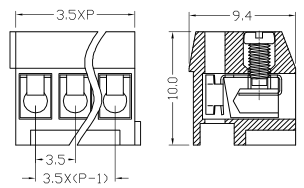

2、Dimensioned drawing：
No.
ITEM
Origin
Material
Surface
QTY
1
Housing
Own
making
PBT（UL 94V-0）
——
1
2
screw
outsourcing
Steel(A3)
Zinc plated
2-24
3
Wire Cage
outsourcing
Brass
Nickel Plated
2-24
Leaf sprin
Own
making
4、Technical data：
Wire range：28-16AWG 1.0mm²
Voltage&Current：300V 8A
Torque：0.2N.m
Withstand Voltage: AC2000V 60s
5、Environment：
Operating Temperature：-40℃ ~ +105℃
Pollution Level：Ⅲ
6、Inspection standards：
GBT 2828.1-2012
7、Useing：
Wire Stripping Lenght：5-6±0.5mm
Soldering：
Wave Soldering：260℃/5s
Hand Soldering：soldering iron350℃/10s
3、BOM：
4
Stainless steel
——
2-24
