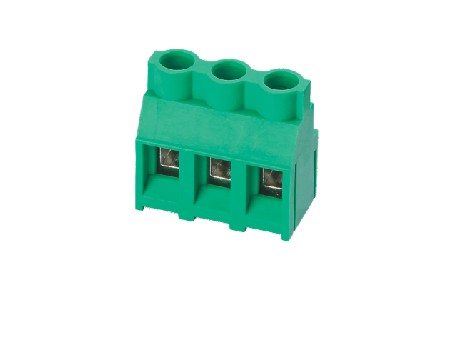

1、Model：TB636-6.35/7.62/9.52
Picth：A=6.36mm(.250")/7.62mm(.300")/9.52mm(.375")
Poles QTY：2P,3P-24P
Color：Green（can choice）

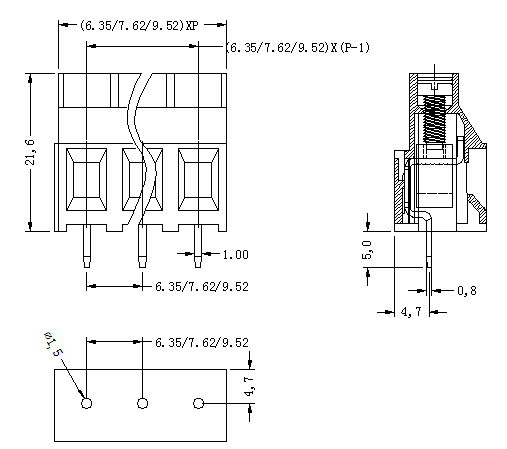

2、Dimensioned drawing：
No.
ITEM
Origin
Material
Surface
QTY
1
Housing
Own
making
PA66（UL 94V-0）
——
1
2
screw
outsourcing
Steel(A3)
Zinc plated
2-24
3
Wire Cage
outsourcing
Brass
Nickel Plated
2-24
4
Pin header
Own
making
Brass
Tin Plated
2-24
4、Technical data：
Wire range：26-10AWG 4.0mm²
Voltage&Current：300V 30A
Torque：0.5N.m
Withstand Voltage：AC3000V 60s
5、Environment：
Operating Temperature：-40℃ ~ +105℃
Pollution Level：Ⅲ
6、Inspection standards：
GBT 2828.1-2012
7、Useing：
Wire Stripping Lenght：8±0.5mm
Soldering：
Wave Soldering：260℃/5s
Hand Soldering：soldering iron350℃/10s
3、BOM：
